22438-19
Abbott Emboshield NAV6 Embolic Protection System: 7.2mm x 190cm
$599.00
kits
In Stock: 2 Eaches
Expiration:
Expired
Express: Need it tomorrow? Order in next 2 hours 8 minutes and choose overnight shipping at checkout.
The item listed above is expired and may be used for educational, training, and non-clinical research purposes only. Any product information appearing below, including the product indication statement, pertains to an in-date item only.
Gore-Tex 30" TTc-9 taper, double armed
$10.00 packets
Chromic Gut 8 x 18" MO-4 taper, CR/8 (8 sutures per packet)
$76.00 packets
Gore-Tex ePTFE Suture 30" PT-9 Piercing Point Needle, Double Armed
$479.00 box of 12
Medtronic TiCron blue 30" HOS-12 Heavy Body Reverse Cutting
$36.00 box of 36
Medtronic Surgipro blue 36" V-20 taper, double armed
$8.00 packets
Description

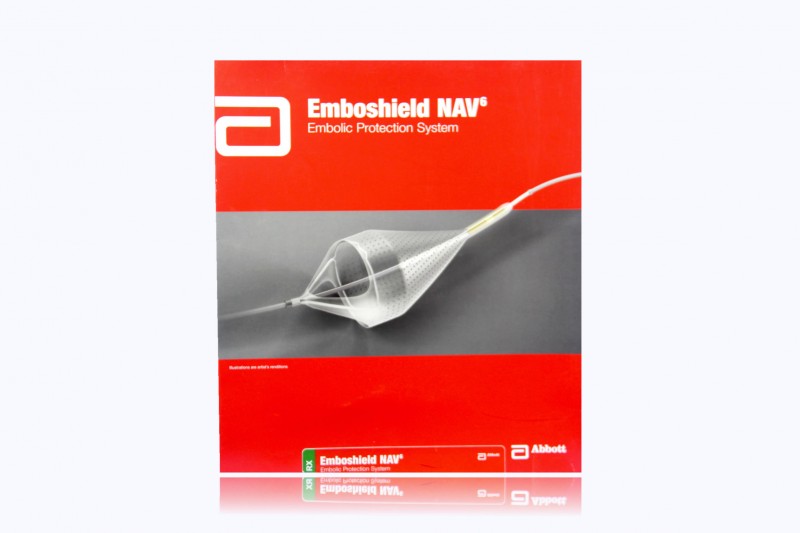

Abbott Emboshield NAV6 Embolic Protection System
The Abbott Emboshield NAV6 Embolic Protection System 22438-19, a filter kit designed for effective management of carotid artery stenting procedures. Engineered by Abbott, a global leader in cardiovascular innovation, this bare-wire system captures and removes embolic debris with a low-profile, independent filter, ensuring vessel protection during stent deployment. Ideal for healthcare professionals performing transfemoral or transcarotid artery revascularization (TCAR) in standard and high-risk patients, this sterile, single-use kit delivers reliable navigation and secure outcomes.
The Emboshield NAV6 is Abbott Vascular's sixth generation in embolic protection devices. This BareWire system allows wire movement independent of the filter, with an advanced filter design for enhanced capture efficiency and flow preservation.
Product Code: 22438-19
- Embolic Protection System
- Unconstrained Filter Diameter: 7.2mm
- Vessel Diameter: 4.0-7.0mm
- Guide Wire Length: 190cm
- Minimum Sheath/Guide Size: 5F/6F
- Minimum Sheath/Guide I.D. Required: 0.070"
- Filtration Element Length: 2.3cm
- Crossing Profile: 3.2F
- Material: Nitinol and Polyurethane Filter
- Design: Bare-Wire, Independent Low-Profile Filter
- Application: Carotid Artery Stenting (≥50% Symptomatic, ≥70% Asymptomatic)
- Single-Use, Disposable
- Sterile
Contents
- Primary Pack, Filtration System: RX Delivery Catheter, Filtration Element, BareWire™ Filter Delivery Wire (Workhorse, 190 cm), Loading Funnel, Introducer, Torque Device, Syringe with Flushing Tip
- Primary Pack, RX Retrieval Catheter: RX Retrieval Catheter, Torque Device, Syringe Flushing Tip
Key Specifications
- Brand: Abbott Cardiovascular
- Category: Peripheral Intervention
- Type: Embolic Capture System
- FDA Product Code: NTE
- FDA Product Code Name: Temporary Carotid Catheter for Embolic Capture
- GMDN Term Name: Embolic Protection Filtering Guidewire
- GMDN Term Definition: A steerable wire with a filter at its distal end intended to be used to facilitate the placement of diagnostic/interventional vascular devices (e.g., angioplasty balloons, intravascular stents) in the lumen of a blood vessel (coronary, carotid, peripheral), and to provide embolic protection by capturing emboli that may result from the procedure. The filter is deployable (expandable) once inserted distal to the vascular lesion (e.g., atherosclerotic plaque). It typically includes devices for introduction/removal of the guidewire (e.g., deployment/removal sheath), which are not intended to be used as working channels for other interventional devices. This is a single-use device.
Indications
The Emboshield NAV6™ Embolic Protection System is indicated for use as a guide wire and embolic protection system to contain and remove embolic material (thrombus / debris) while performing angioplasty and stenting procedures in carotid arteries and while performing atherectomy, during standalone procedures or together with PTA and/or stenting, in lower extremity arteries. The diameter of the artery at the site of the Filtration Element placement should be between 2.5 and 7.0 mm.
Contraindications
The Emboshield NAV6™ Embolic Protection System is contraindicated for use in:
- Patients in whom anticoagulant and / or antiplatelet therapy is contraindicated.
- Patients with severe vascular tortuosity or anatomy that would preclude the safe introduction of the Guiding Catheter / Introducer Sheath, Embolic Protection System.
- Patients with a known allergy or hypersensitivity to device materials (Nitinol, Nickel, Titanium) or contrast medium, who cannot be adequately premedicated.
- Patients with uncorrected bleeding disorders.
- Lesions in the ostium of the common carotid artery.
- Inability to cross the lesion with the BareWire™ Filter Delivery Wire.
- Diffusely diseased vessels where there is no disease-free section in which to deploy the Filtration Element
- Insufficient straight section of vessel distal to the lesion to permit Filtration Element deployment.
Additional information
| Size | 7.00mm |
|---|---|
| Arms | N/A |
| Manufacturer | |
| Unit | kits |
- FDA Product Code: NTE
- FDA Product Code Name: Temporary Carotid Catheter For Embolic Capture
- GMDN Term Code: 44841
- GMDN Term Name: Embolic protection filtering guidewire
- GMDN Term Description: A steerable wire with a filter at its distal end intended to be used to facilitate the placement of diagnostic/interventional vascular devices (e.g., angioplasty balloons, intravascular stents) in the lumen of a blood vessel (coronary, carotid, peripheral), and to provide embolic protection by capturing emboli that may result from the procedure. The filter is deployable (expandable) once inserted distal to the vascular lesion (e.g., atherosclerotic plaque). It typically includes devices for introduction/removal of the guidewire (e.g., deployment/removal sheath), which are not intended to be used as working channels for other interventional devices. This is a single-use device.
