IBI-87008

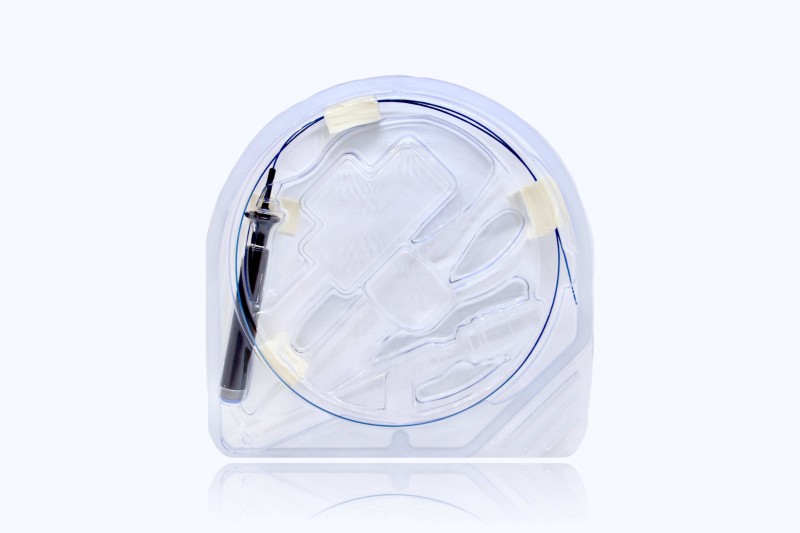

Abbott SJM Inquiry AFocusII Electrophysiology Diagnostic Mapping Catheter, Double Loop, 7F / 4mm Spacing / 20 Electrodes
$70.00
box of 1
In Stock: 7 Eaches
Expiration:
Expired
Express: Need it tomorrow? Order in next 2 hours 8 minutes and choose overnight shipping at checkout.
The item listed above is expired and may be used for educational, training, and non-clinical research purposes only. Any product information appearing below, including the product indication statement, pertains to an in-date item only.
Medtronic Surgipro blue 24" CV-1 taper, double armed
$429.00 box of 36
Medtronic Surgipro blue 30" C-16 cutting
$129.50 box of 36
x
$33.00 box of 24
Medtronic Sofsilk black 30" CV-11 taper
$7.00 packets
Medtronic Monosof black 18" C-15 cutting
$1.75 packets
Description
Abbott SJM Inquiry Electrophysiology Diagnostic Mapping Catheter
- Highly detailed maps in a localized region
- Suitable for mapping and geometry creation
- 180 degree deflection to facilitate placement
IBI-87008
- 1120-7-4-SM-AF20DL
- 4F Double Loop
- Shaft Size: 7F
- Number of Electrodes: 20
- Electrode Size: 2mm Tip, 1mm Others
- Electrode Spacing: 4mm, Evenly Spaced
- Shaft Deflection: 180° Uni-directional
- Loop Diameter: 20mm
- Usable Length: 110cm
- For use with connecting cable REF # IBI-85931 (Not Included)
Additional Details
- Company: Abbott, St. Jude Medical, Irvine Biomedical
- FDA Product Code: DRF
- FDA Product Code Name: CATHETER, ELECTRODE RECORDING, OR PROBE, ELECTRODE RECORDING
- GMDN Term Code: 46355
- GMDN Term Name: Cardiac mapping catheter, percutaneous, single-use
- GMDN Term Definition: A sterile, steerable, flexible tube containing multiple electrodes that is introduced percutaneously into the heart chambers in order to transmit electrical impulses for electrophysiological diagnostic examinations, e.g., intracardiac sensing, endocardial recording, stimulation, temporary pacing for evaluation of cardiac arrhythmias, cardioversion (CV) of electrical arrhythmias or electrophysiology (EP) mapping of cardiac structures. It is typically made of plastic with embedded electrodes often of platinum (Pt), iridium, or a composite. This is a single-use device.
Additional information
| Size | 7.0F |
|---|---|
| Arms | N/A |
| Manufacturer | |
| Unit | box of 1 |
- FDA Product Code: DRF
- FDA Product Code Name: CATHETER, ELECTRODE RECORDING, OR PROBE, ELECTRODE RECORDING
- GMDN Term Code: 46355
- GMDN Term Name: Cardiac mapping catheter, percutaneous, single-use
- GMDN Term Description: A sterile, steerable, flexible tube containing multiple electrodes that is introduced percutaneously into the heart chambers in order to transmit electrical impulses for electrophysiological diagnostic examinations, e.g., intracardiac sensing, endocardial recording, stimulation, temporary pacing for evaluation of cardiac arrhythmias, cardioversion (CV) of electrical arrhythmias or electrophysiology (EP) mapping of cardiac structures. It is typically made of plastic with embedded electrodes often of platinum (Pt), iridium, or a composite. This is a single-use device.
