1008191-20

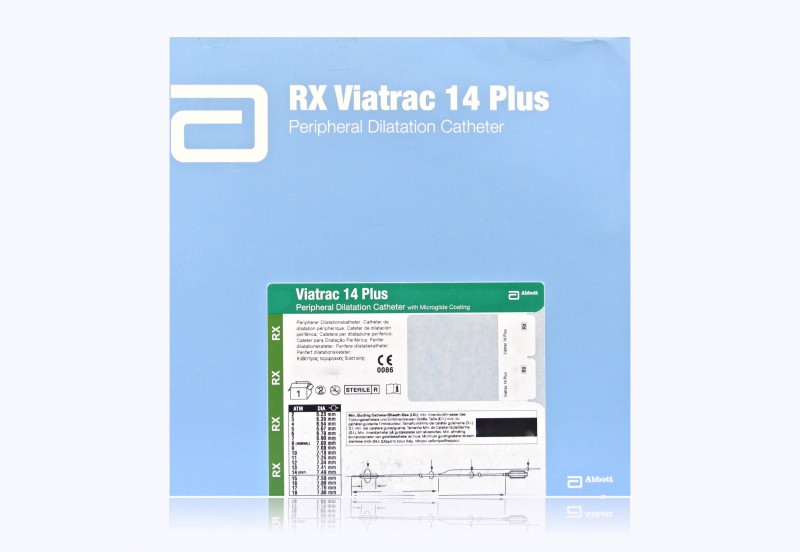

Abbott Viatrac 14 Plus Peripheral Dilatation Catheter: 4.5mm x 20mm x 135cm
$11.00
box of 1
In Stock: 2 Eaches
Expiration:
Expired
Express: Need it tomorrow? Order in next 2 hours 8 minutes and choose overnight shipping at checkout.
The item listed above is expired and may be used for educational, training, and non-clinical research purposes only. Any product information appearing below, including the product indication statement, pertains to an in-date item only.
Medtronic Chromic Gut 18" HE-1 cutting, double armed
$1.00 packets
Gore-Tex 36" TH-26 taper, double armed
$10.00 packets
Medtronic Biosyn undyed 18" CVF-21 taper
$65.50 box of 36
Medtronic Polysorb undyed 60" strand (ligating reel) (no needle)
$99.00 box of 24
Medtronic Chromic Gut 30" V-20 taper
$36.00 box of 36
Medtronic Maxon green 30" CV-23 taper
$229.00 box of 36
Description
Abbott Viatrac 14 Plus Peripheral Transluminal Angioplasty (PTA) Balloon Dilatation Catheter
Optimize your surgical approach with the Abbott Viatrac 14 Plus, a balloon dilatation catheter designed for effective management of peripheral artery stenosis procedures in the iliac, femoral, ilio-femoral, popliteal, infrapopliteal, and renal arteries. Engineered by Abbott, a global leader in cardiovascular innovation, this rapid-exchange catheter features a hydrophobic-coated shaft and balloon for reduced friction, with a flexible distal design for precise positioning in challenging lesions. Ideal for healthcare professionals performing peripheral interventions, this sterile, single-use device ensures reliable dilation and secure outcomes.
Product Code: 1008191-20
- Balloon Length: 20mm
- Balloon Diameter: 4.5mm
- Crossing Profile: 0.037"
- Nominal Pressure: 8atm
- Rated Burst Pressure: 14atm
- Proximal/Distal Shaft Diameter: 3.3F/3.3-2.9F
- Minimum Guiding Catheter: 6F
- Minimum Sheath Size: 4F
- Maximum Guide Wire: 0.014"
Abbott Viatrac 14 Plus PTA Balloon
- Percutaneous Transluminal Angioplasty Catheter
- Material: Nylon Balloon with Hydrophobic Coating
- Design: Rapid-Exchange, Flexible Distal with Radiopaque Markers
- Application: Peripheral Artery Stenosis (Iliac, Femoral, Ilio-femoral, Popliteal, Infrapopliteal, Renal)
- Single-Use, Disposable
- Sterile
Features
- A .014" guide-wire-based delivery system, allowing treatment of stenosis in the peripheral arteries
- Rapid exchange (RX) – Single-operator, simple balloon exchanges, shorter guide wires than OTW systems
- Low profile – The system is 6F guide compatible across all sizes
Key Specifications
- Brand: Abbott Cardiovascular
- Category: Peripheral Intervention
- Type: Endovascular Surgical Device
- FDA Product Code: LIT
- FDA Product Code Name: Catheter, Angioplasty, Peripheral, Transluminal
- GMDN Term Name: Peripheral Angioplasty Balloon Catheter, Basic
- GMDN Term Definition: A sterile, flexible tube with an inflatable balloon used in percutaneous transluminal angioplasty (PTA) to dilate a stenotic peripheral artery (e.g., iliac, femoral, popliteal) by controlled inflation, restoring blood flow; it is not intended for coronary or cerebral vessels. It typically is inserted over a guidewire and may include radiopaque markers for positioning.
Additional information
| Size | 4.50mm |
|---|---|
| Arms | N/A |
| Balloon Length | 20mm |
| Manufacturer | |
| Unit | box of 1 |
| Usable Length | 135cm |
- FDA Product Code: LIT
- FDA Product Code Name: Catheter, Angioplasty, Peripheral, Transluminal
- GMDN Term Code: 17184
- GMDN Term Name: Peripheral angioplasty balloon catheter, basic
- GMDN Term Description: A sterile, non-drug-eluting, flexible tube designed for percutaneous transluminal angioplasty (PTA) to dilate a stenotic peripheral (i.e., non-cerebral, non-coronary) artery by controlled inflation of a distensible balloon(s) at its distal tip; it may also be intended for positioning and expansion of a stent/stent-graft. It is available as an over-the-wire (OTW) type with multiple lumens, or a rapid exchange (RX) type with a single lumen. Some types may include cutting/scoring elements (e.g., microsurgical blades, dual wire configurations) to score/modify the plaque. This is a single-use device.
