190-5091-150
Medtronic Echelon-10 Microcatheter 2.1F/1.7F, 0.017″ ID x 150cm, 5mm 90° Tip
$199.00
box of 1
In Stock: 8 Eaches
Expiration:
Expired
Express: Need it tomorrow? Order in next 2 hours 8 minutes and choose overnight shipping at checkout.
The item listed above is expired and may be used for educational, training, and non-clinical research purposes only. Any product information appearing below, including the product indication statement, pertains to an in-date item only.
Medtronic Polysorb violet 30" CV-23 taper
$4.00 packets
Medtronic Surgipro blue 36" V-20 taper, double armed
$3.00 packets
Medtronic Surgipro blue 18" P-10 cutting
$10.00 packets
Medtronic Polysorb undyed 18" P-10 cutting
$10.00 packets
Medtronic Monosof clear 18" P-13 cutting
$1.00 packets
Description

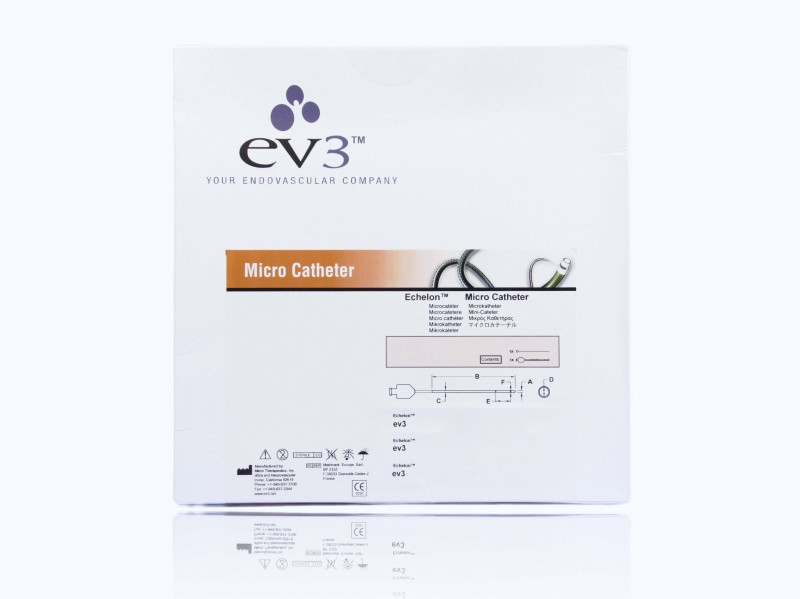

Medtronic 190-5091-150 ev3 Echelon-14 Microcatheter
The Echelon™ micro catheter is a single-lumen catheter designed to be introduced over a steerable guidewire into the vasculature during neurovascular procedures
The Echelon™ micro catheter has nitinol braid technology with progressive picks-per-inch. It provides:
- A balance between pushability and softness via graduated zones and transition points
- Optimal proximal pushability, stability, and support
- Kink resistance and minimal ovalization to maintain lumen durability for reliable device delivery
Product Code: 190-5091-150
- Outer Diameter (OD): 2.1F-1.7F
- Inner Diameter (ID): 0.017"
- Usable Length: 150cm
- Maximum Guidewire: 0.014"
- Tip Shape: 90°
Features
- A proximal fluoro-safe marker band
- Steam-shapeable flexible tip with dual marker bands
- DMSO compatible
- Large 0.017" ID
- For the Echelon™ 10 micro catheter, a low profile 0.028" OD
Sterilization
- Device Packaged as Sterile: Yes
- Requires Sterilization Prior to Use: No
- Single-Use
- Disposable
Additional Details
- Company Name: Micro Therapeutics, Inc.
- FDA Product Code: KRA
- FDA Product Code Name: Catheter, Continuous Flush
- GMDN Term Code: 10691
- GMDN Term Name: Vascular Microcatheter
- GMDN Term Definition: A sterile, small-diameter, single-lumen, flexible tube designed for the controlled infusion of fluids (e.g., thrombolytics, diagnostic contrast media) into superselective small vessels (including intracranial, peripheral, or occluded coronary vasculature) for angiography/treatment, and typically also for the delivery of devices (e.g., embolization implants, guidewires) into tortuous vessels or across tight lesions. It may include an ultrasound transducer, a thermal sensor, and a hole for guidewire placement located at the distal tip. It is not a guide-catheter (i.e., is not intended to deliver other catheters or therapeutic leads directly through its lumen). This is a single-use device.
Additional information
| Size | 1 |
|---|---|
| Arms | N/A |
| Manufacturer | |
| Unit | box of 1 |
- FDA Product Code: KRA
- FDA Product Code Name: Catheter, continuous flush
- GMDN Term Code: 10691
- GMDN Term Name: Vascular microcatheter
- GMDN Term Description: A sterile, small-diameter, single-lumen, flexible tube designed for the controlled infusion of fluids (e.g., thrombolytics, diagnostic contrast media) into superselective small vessels (including intracranial, peripheral, or occluded coronary vasculature) for angiography/treatment, and typically also for the delivery of devices (e.g., embolization implants, guidewires) into tortuous vessels or across tight lesions. It may include an ultrasound transducer, a thermal sensor, and a hole for guidewire placement located at the distal tip. It is not a guide-catheter (i.e., is not intended to deliver other catheters or therapeutic leads directly through its lumen). This is a single-use device.
