RFX058-130-08
Medtronic Navien 058 5F Intracranial Support-Aspiration Catheter, Straight 130cm, Distal Flexible Length 8cm
Original price was: $499.00.$399.20Current price is: $399.20.
box of 1
In Stock: 1 Each
Expiration:
Expired
Express: Need it tomorrow? Order in next 2 hours 8 minutes and choose overnight shipping at checkout.
The item listed above is expired and may be used for educational, training, and non-clinical research purposes only. Any product information appearing below, including the product indication statement, pertains to an in-date item only.
Medtronic Biosyn undyed 96" GS-26 taper, looped to 48"
$5.65 packets
Medtronic Plain Gut 60" strand
$10.00 packets
Medtronic Chromic Gut 30" V-26 taper
$4.00 packets
Medtronic Polysorb undyed 30" V-20 taper
$149.00 box of 36
Maxon green 60" GS-26 taper, looped to 30"
$8.95 packets
Medtronic Chromic Gut 18" SS-2 spatula, double armed
$31.50 packets
Medtronic Polysorb violet 30" GU-45 taper
$1.00 packets
Medtronic Chromic Gut 30" V-20 taper
$6.00 packets
Description

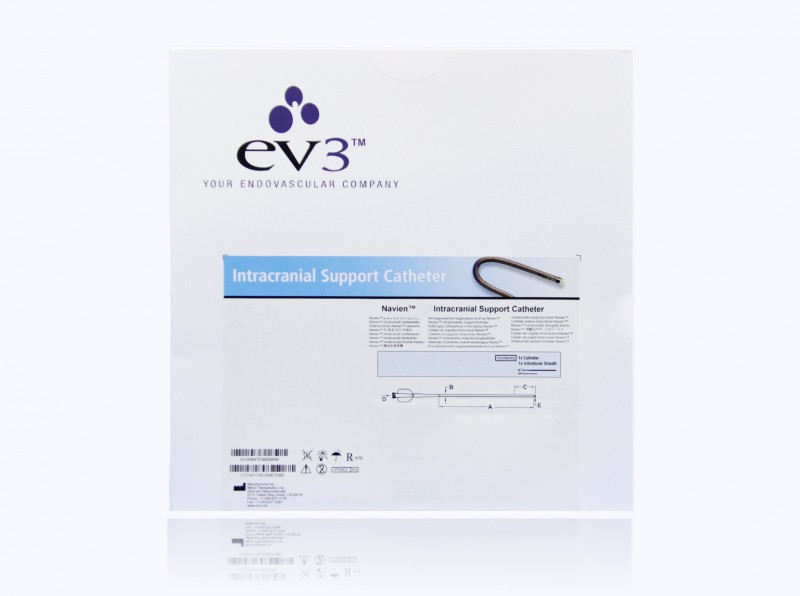

Medtronic ev3 Navien Intracranial Support-Aspiration Catheter
The Medtronic Navien™ Intracranial Support Catheter is a high-performance neurovascular device engineered for superior navigation, stability, and support during complex intracranial procedures. Featuring a large 0.058” inner diameter, the Navien™ catheter enables greater device compatibility, enhanced contrast flow, and improved visualization for precise intervention. Its unique nitinol braid design reduces trackability force, minimizes ovalization, and preserves lumen shape for reliable performance across tortuous anatomy.
- Distal flexible length for all sizes: 8cm
- Wire compatibility: 0.035”/0.038”
Product Code: RFX058-130-08
- Max Outer Diameter (OD): 0.070"
- Inner Diameter: 0.058"
- Total Length: 130cm
- Tip Shape: Straight
Sterilization
- Device Packaged as Sterile: Yes
- Requires Sterilization Prior to Use: No
- Single-Use, Disposable
Additional Details
- Brand: Medtronic / ev3 / Micro Therapeutics
- Category: Neurovascular Catheters
- Type: Intracranial Support Catheter
- FDA Product Code: DQY
- FDA Product Code Name: Catheter, Percutaneous
- GMDN Term Code: 10691
- GMDN Term Name: Vascular Microcatheter
- GMDN Term Definition: A sterile, small-diameter, single-lumen, flexible tube designed for the controlled infusion of fluids (e.g., thrombolytics, diagnostic contrast media) into superselective small vessels (including intracranial, peripheral, or occluded coronary vasculature) for angiography/treatment, and typically also for the delivery of devices (e.g., embolization implants, guidewires) into tortuous vessels or across tight lesions. It may include an ultrasound transducer, a thermal sensor, and a hole for guidewire placement located at the distal tip. It is not a guide-catheter (i.e., is not intended to deliver other catheters or therapeutic leads directly through its lumen). This is a single-use device.
Additional information
| Size | 0.058" |
|---|---|
| Arms | N/A |
| Manufacturer | |
| Unit | box of 1 |
- FDA Product Code: DQY
- FDA Product Code Name: Catheter, Percutaneous
- GMDN Term Code: 17846
- GMDN Term Name: Vascular guide-catheter, single-use
- GMDN Term Description: A flexible tube intended to be used for the percutaneous transluminal passage and placement of a diagnostic/interventional catheter, lead (e.g., pacing lead, balloon dilatation catheter), needle or guidewire through its lumen(s), within the vascular system. It may be rigid or flexible, non-steerable or steerable, single or multiple lumen(s), and the distal section can have a variety of preformed shapes (e.g., straight, hockey stick). It is not intended solely for infusion, is not intended to access superselective small vessels, and does not include a transseptal needle. It may include a disposable percutaneous introduction set or shaft visualization electrodes. This is a single-use device.
